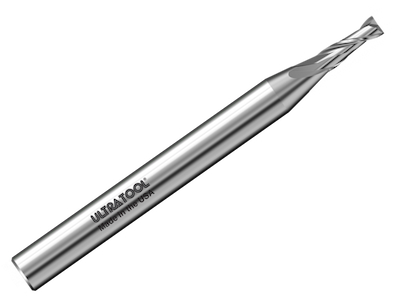

Solid Carbide 2 Flute Micro Slot Drill 3xD

  • 2 Flute
  • 3 x Diameter Flute
  • 1 1/2" OAL Length
  • 1/8 Shank
  • Square End
  • Right Hand Spiral Right Hand Cut
  • Helix 30°
    Manufactured by Ultra Tool USA

Tolerance
Diameter +.0003 / -.0003
Shank +.0000 / -.0002

Also Available 1.5xDiameter and 5xDiameter as well as Ball Nose and with 4 Flutes.

Great range of micro milling cutters.

Enquire if you would like tools coated - coatings available TiAlN, TiN, or TiCN

Full Range Specification

Info

Part No

Description
Flute
Length
mm		O/A
Length
mm		FlutesShank
Dia
mm

In Stock

Price

Qty

Add

SDCLS-0.10

0.10mm (0.10mm)

4.53823

0

 £25.57

SDCLS-.005

0.127 mm (0.005")

0.43823.175

0

 £25.57

SDCLS-0.15

0.15mm (0.15mm)

0.33823

1

 £25.57

SDCLS-.006

0.1524mm (0.006")

0.53823.175

0

 £25.57

SDCLS-.007

0.1778mm (0.007")

0.53823.175

0

 £25.57

SDCLS-0.20

0.20mm (0.20mm)

0.53823

0

 £22.94

SDCLS-.008

0.2032mm (0.008")

0.63823.175

0

 £25.57

SDCLS-.009

0.2286mm (0.009")

0.73823.175

0

 £25.57

SDCLS-0.25

0.25mm (0.25mm)

0.53823

1

 £22.94

SDCLS-.01

0.254 mm (0.01")

0.83823.175

2

 £22.94

SDCLS-.011

0.2794mm (0.011")

0.83823.175

0

 £22.94

SDCLS-0.30

0.30mm (0.30mm)

0.63823

0

 £22.94

SDCLS-.012

0.3048mm (0.012")

0.93823.175

0

 £22.94

SDCLS-.013

0.3302mm (0.013")

13823.175

0

 £22.94

SDCLS-0.35

0.35mm (0.35mm)

0.93823

0

 £22.94

SDCLS-.014

0.3556mm (0.014")

1.13823.175

0

 £22.94

SDCLS-.015

0.381 mm (0.015")

1.13823.175

0

 £22.94

SDCLS-0.40

0.40mm (0.40mm)

1.13823

1

 £22.94

SDCLS-.016

0.4064mm (0.016")

1.23823.175

0

 £22.94

SDCLS-.017

0.4318mm (0.017")

1.33823.175

0

 £22.94

SDCLS-0.45

0.45mm (0.45mm)

1.23823

0

 £22.94

SDCLS-.018

0.4572mm (0.018")

1.43823.175

0

 £22.94

SDCLS-.019

0.4826mm (0.019")

1.43823.175

0

 £22.94

SDCLS-0.50

0.50mm (Fishtail Point)

1.43823

6

 £22.12

SDCLS-.02

0.508 mm (0.02")

1.53823.175

0

 £22.94

SDCLS-.021

0.5334mm (0.021")

1.63823.175

0

 £22.12

SDCLS-0.55

0.55mm (0.55mm)

1.53823

0

 £22.12

SDCLS-.022

0.5588mm (0.022")

1.73823.175

0

 £22.12

SDCLS-.023

0.5842mm (0.023")

1.83823.175

0

 £22.12

SDCLS-0.60

0.60mm (Fishtail Point)

1.73823

13

 £22.12

SDCLS-.024

0.6096mm (0.024")

1.83823.175

0

 £22.12

SDCLS-.025

0.635 mm (0.025")

1.93823.175

0

 £22.12

SDCLS-0.65

Fishtail Point (0.65mm Diameter)

1.83823

0

 £22.12

SDCLS-.026

0.6604mm (0.026")

23823.175

0

 £22.12

SDCLS-.027

0.6858mm (0.027")

2.13823.175

0

 £22.12

SDCLS-0.70

0.70mm (0.70mm)

23823

2

 £22.12

SDCLS-.028

0.7112mm (0.028")

2.13823.175

0

 £22.12

SDCLS-.029

0.7366mm (0.029")

2.23823.175

0

 £22.12

SDCLS-0.75

0.75mm (0.75mm)

2.13823

0

 £21.51

SDCLS-.03

0.762 mm (0.03")

2.33823.175

0

 £21.51

SDCLS-.031

0.7874mm (0.031")

2.43823.175

0

 £21.51

SDCLS-0.80

0.80mm (Fishtail Point)

2.33823

149

 £21.51

SDCLS-.032

0.8128mm (0.032")

2.43823.175

0

 £21.51

SDCLS-.033

0.8382mm (0.033")

2.53823.175

0

 £21.51

SDCLS-0.85

0.85mm (0.85mm)

2.43823

0

 £21.51

SDCLS-.034

0.8636mm (0.034")

2.63823.175

0

 £21.51

SDCLS-.035

0.889 mm (0.035")

2.73823.175

0

 £21.51

SDCLS-0.90

0.90mm (Fishtail Point)

2.63823

16

 £21.51

SDCLS-.036

0.9144mm (0.036")

2.73823.175

0

 £21.51

SDCLS-.037

0.9398mm (0.037")

2.83823.175

0

 £21.51

SDCLS-0.95

0.95mm (0.95mm)

2.73823

0

 £21.51

SDCLS-.038

0.9652mm (0.038")

2.93823.175

0

 £21.51

SDCLS-.039

0.9906mm (0.039")

33823.175

0

 £21.51

SDCLS-1.00

1.00mm (Fishtail Point)

2.93823

20

 £21.51

SDCLS-1.00-H

1.00mm (Fishtail Point)

4.23823

20

 £12.25

SDCLS-.04

1.016 mm (0.04")

33823.175

0

 £21.51

SDCLS-.041

1.0414mm (0.041")

3.13823.175

0

 £21.51

SDCLS-1.05

1.05mm (1.05mm)

33823

0

 £21.51

SDCLS-.042

1.0668mm (0.042")

3.23823.175

0

 £21.51

SDCLS-.043

1.0922mm (0.043")

3.33823.175

0

 £21.51

SDCLS-1.10

1.10mm (Fishtail Point)

3.23823

45

 £21.51

SDCLS-.044

1.1176mm (0.044")

3.43823.175

0

 £21.51

SDCLS-.045

1.143 mm (0.045")

3.43823.175

0

 £21.51

SDCLS-1.15

1.15mm (1.15mm)

3.33823

0

 £21.51

SDCLS-.046

1.1684mm (0.046")

3.53823.175

0

 £21.51

SDCLS-.047

1.1938mm (0.047")

3.63823.175

0

 £21.51

SDCLS-1.20

1.20mm (Fishtail Point)

3.53823

20

 £21.51

SDCLS-.048

1.2192mm (0.048")

3.73823.175

0

 £21.51

SDCLS-.049

1.2446mm (0.049")

3.73823.175

0

 £21.51

SDCLS-1.25

1.25mm (1.25mm)

3.63823

0

 £20.21

SDCLS-.05

1.27 mm (0.05")

3.83823.175

0

 £20.21

SDCLS-.051

1.2954mm (0.051")

3.93823.175

0

 £20.21

SDCLS-1.30

1.30mm (Fishtail Point)

3.83823

10

 £20.21

SDCLS-.052

1.3208mm (0.052")

43823.175

0

 £20.21

SDCLS-.053

1.3462mm (0.053")

43823.175

0

 £20.21

SDCLS-1.35

1.35mm (1.35mm)

3.93823

0

 £20.21

SDCLS-.054

1.3716mm (0.054")

4.13823.175

0

 £20.21

SDCLS-.055

1.397 mm (0.055")

4.23823.175

0

 £20.21

SDCLS-1.40

1.40mm (Fishtail Point)

4.13823

51

 £20.21

SDCLS-.056

1.4224mm (0.056")

4.33823.175

0

 £20.21

SDCLS-.057

1.4478mm (0.057")

4.33823.175

0

 £20.21

SDCLS-1.45

1.45mm (1.45mm)

4.23823

0

 £20.21

SDCLS-.058

1.4732mm (0.058")

4.43823.175

0

 £20.21

SDCLS-.059

1.4986mm (0.059")

4.53823.175

0

 £20.21

SDCLS-1.50

1.50mm (Fishtail Point)

4.43823

8

 £25.57

SDCLS-.06

1.524 mm (0.06")

4.63823.175

0

 £20.21

SDCLS-.061

1.5494mm (0.061")

4.63823.175

0

 £20.21

SDCLS-.062

1.5748mm (0.062")

4.73823.175

0

 £20.21

SDCLS-.065

1.651 mm (0.065")

03823.175

0

 £20.21

SDCLS-.07

1.778 mm (0.07")

5.33823.175

0

 £20.21

SDCLS-.075

1.905 mm (0.075")

5.73823.175

0

 £20.21

SDCLS-.078

1.9812mm (0.078")

5.93823.175

0

 £20.21

SDCLS-.08

2.032 mm (0.08")

6.13823.175

0

 £20.21

SDCLS-.085

2.159 mm (0.085")

6.53823.175

0

 £20.21

SDCLS-.09

2.286 mm (0.09")

6.93823.175

0

 £20.21

SDCLS-.093

2.3622mm (0.093")

7.13823.175

0

 £20.21

SDCLS-.095

2.413 mm (0.095")

7.23823.175

0

 £20.21

SDCLS-.1

2.54 mm (0.1")

7.63823.175

0

 £20.21

SDCLS-.105

2.667 mm (0.105")

83823.175

0

 £20.21

SDCLS-.11

2.794 mm (0.11")

8.43823.175

0

 £20.21

SDCLS-.115

2.921 mm (0.115")

8.83823.175

0

 £20.21

SDCLS-.118

2.9972mm (0.118")

93823.175

0

 £20.21

SDCLS-.12

3.048 mm (0.12")

9.13823.175

0

 £20.21
