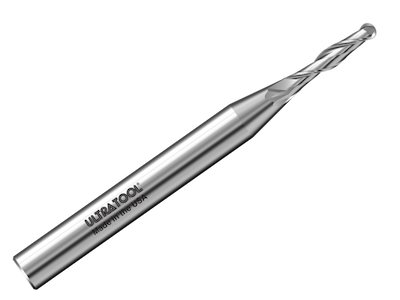

Solid Carbide 4 Flute Micro Ball Nose Slot Drill 5xD
- 2 Flute
- 5 x Diameter Flute
- 1 1/2" OAL Length
- 1/8 Shank
- Ball Nose
- Right Hand Spiral Right Hand Cut
- Helix 30°
Manufactured by Ultra Tool USA
Tolerance
Diameter +.0003 / -.0003
Shank +.0000 / -.0002
Also Available 3xDiameter and 5xDiameter as well as Square End and with 4Flutes.
Great range of micro milling cutters.
Enquire if you would like tools coated - coatings available TiAlN, TiN, or TiCN
Info |
Part No |
Description |
|
In Stock |
Price |
Qty |
Add |
||||
SDCELBN-.005 |
0.127 mm (0.005") |
|
0 |
£29.64 | |||||||
SDCELBN-.006 |
0.1524mm (0.006") |
|
0 |
£29.64 | |||||||
SDCELBN-.007 |
0.1778mm (0.007") |
|
0 |
£29.64 | |||||||
SDCELBN-.008 |
0.2032mm (0.008") |
|
0 |
£29.64 | |||||||
SDCELBN-.009 |
0.2286mm (0.009") |
|
0 |
£29.64 | |||||||
SDCELBN-0.25 |
0.25mm Carbide Micro SD BN 2 FL 5XD (0.25mm) |
|
0 |
£26.89 | |||||||
SDCELBN-.01 |
0.254 mm (0.01") |
|
0 |
£29.64 | |||||||
SDCELBN-.011 |
0.2794mm (0.011") |
|
0 |
£26.89 | |||||||
SDCELBN-0.30 |
0.30mm Carbide Micro SD BN 2 FL 5XD (0.30mm) |
|
0 |
£26.89 | |||||||
SDCELBN-.012 |
0.3048mm (0.012") |
|
0 |
£26.89 | |||||||
SDCELBN-.013 |
0.3302mm (0.013") |
|
0 |
£26.89 | |||||||
SDCELBN-.014 |
0.3556mm (0.014") |
|
0 |
£26.89 | |||||||
SDCELBN-.015 |
0.381 mm (0.015") |
|
0 |
£26.89 | |||||||
SDCELBN-0.40 |
0.40mm Carbide Micro SD BN 2 FL 5XD (0.40mm) |
|
0 |
£26.89 | |||||||
SDCELBN-.016 |
0.4064mm (0.016") |
|
0 |
£26.89 | |||||||
SDCELBN-.017 |
0.4318mm (0.017") |
|
0 |
£26.89 | |||||||
SDCELBN-.018 |
0.4572mm (0.018") |
|
0 |
£26.89 | |||||||
SDCELBN-.019 |
0.4826mm (0.019") |
|
0 |
£26.89 | |||||||
SDCELBN-0.50 |
0.50mm Carbide Micro SD BN 2 FL 5XD (0.50mm) |
|
0 |
£26.89 | |||||||
SDCELBN-.02 |
0.508 mm (0.02") |
|
0 |
£26.89 | |||||||
SDCELBN-.021 |
0.5334mm (0.021") |
|
0 |
£26.18 | |||||||
SDCELBN-.022 |
0.5588mm (0.022") |
|
0 |
£26.18 | |||||||
SDCELBN-.023 |
0.5842mm (0.023") |
|
0 |
£26.18 | |||||||
SDCELBN-0.60 |
0.60mm Carbide Micro SD BN 2 FL 5XD (0.60mm) |
|
0 |
£25.57 | |||||||
SDCELBN-.024 |
0.6096mm (0.024") |
|
0 |
£26.18 | |||||||
SDCELBN-.025 |
0.635 mm (0.025") |
|
0 |
£26.18 | |||||||
SDCELBN-.026 |
0.6604mm (0.026") |
|
0 |
£26.18 | |||||||
SDCELBN-.027 |
0.6858mm (0.027") |
|
0 |
£26.18 | |||||||
SDCELBN-0.70 |
0.70mm Carbide Micro SD BN 2 FL 5XD (0.70mm) |
|
0 |
£25.57 | |||||||
SDCELBN-.028 |
0.7112mm (0.028") |
|
0 |
£26.18 | |||||||
SDCELBN-.029 |
0.7366mm (0.029") |
|
0 |
£26.18 | |||||||
SDCELBN-.03 |
0.762 mm (0.03") |
|
0 |
£25.57 | |||||||
SDCELBN-.031 |
0.7874mm (0.031") |
|
0 |
£25.57 | |||||||
SDCELBN-0.80 |
0.80mm Carbide Micro SD BN 2 FL 5XD (0.80mm) |
|
0 |
£25.57 | |||||||
SDCELBN-.032 |
0.8128mm (0.032") |
|
0 |
£25.57 | |||||||
SDCELBN-.033 |
0.8382mm (0.033") |
|
0 |
£25.57 | |||||||
SDCELBN-.034 |
0.8636mm (0.034") |
|
0 |
£25.57 | |||||||
SDCELBN-.035 |
0.889 mm (0.035") |
|
0 |
£25.57 | |||||||
SDCELBN-0.90 |
0.90mm Carbide Micro SD BN 2 FL 5XD (0.90mm) |
|
0 |
£25.57 | |||||||
SDCELBN-.036 |
0.9144mm (0.036") |
|
0 |
£25.57 | |||||||
SDCELBN-.037 |
0.9398mm (0.037") |
|
0 |
£25.57 | |||||||
SDCELBN-.038 |
0.9652mm (0.038") |
|
0 |
£25.57 | |||||||
SDCELBN-.039 |
0.9906mm (0.039") |
|
0 |
£25.57 | |||||||
SDCELBN-1.00 |
1.00mm Carbide Micro SD BN 2 FL 5XD (1.00mm) |
|
0 |
£24.15 | |||||||
SDCELBN-.04 |
1.016 mm (0.04") |
|
0 |
£25.57 | |||||||
SDCELBN-.041 |
1.0414mm (0.041") |
|
0 |
£25.57 | |||||||
SDCELBN-.042 |
1.0668mm (0.042") |
|
0 |
£25.57 | |||||||
SDCELBN-.043 |
1.0922mm (0.043") |
|
0 |
£25.57 | |||||||
SDCELBN-1.10 |
1.10mm Carbide Micro SD BN 2 FL 5XD (1.10mm) |
|
0 |
£24.15 | |||||||
SDCELBN-.044 |
1.1176mm (0.044") |
|
0 |
£25.57 | |||||||
SDCELBN-.045 |
1.143 mm (0.045") |
|
0 |
£25.57 | |||||||
SDCELBN-.046 |
1.1684mm (0.046") |
|
0 |
£25.57 | |||||||
SDCELBN-.047 |
1.1938mm (0.047") |
|
0 |
£25.57 | |||||||
SDCELBN-1.20 |
1.20mm Carbide Micro SD BN 2 FL 5XD (1.20mm) |
|
0 |
£24.15 | |||||||
SDCELBN-.048 |
1.2192mm (0.048") |
|
0 |
£25.57 | |||||||
SDCELBN-.049 |
1.2446mm (0.049") |
|
0 |
£25.57 | |||||||
SDCELBN-.05 |
1.27 mm (0.05") |
|
0 |
£24.15 | |||||||
SDCELBN-.051 |
1.2954mm (0.051") |
|
0 |
£24.15 | |||||||
SDCELBN-1.30 |
1.30mm Carbide Micro SD BN 2 FL 5XD (1.30mm) |
|
0 |
£26.89 | |||||||
SDCELBN-.052 |
1.3208mm (0.052") |
|
0 |
£24.15 | |||||||
SDCELBN-.053 |
1.3462mm (0.053") |
|
0 |
£24.15 | |||||||
SDCELBN-.054 |
1.3716mm (0.054") |
|
0 |
£24.15 | |||||||
SDCELBN-.055 |
1.397 mm (0.055") |
|
0 |
£24.15 | |||||||
SDCELBN-1.40 |
1.40mm Carbide Micro SD BN 2 FL 5XD (1.40mm) |
|
0 |
£26.89 | |||||||
SDCELBN-.056 |
1.4224mm (0.056") |
|
0 |
£24.15 | |||||||
SDCELBN-.057 |
1.4478mm (0.057") |
|
0 |
£24.15 | |||||||
SDCELBN-.058 |
1.4732mm (0.058") |
|
0 |
£24.15 | |||||||
SDCELBN-.059 |
1.4986mm (0.059") |
|
0 |
£24.15 | |||||||
SDCELBN-1.50 |
1.50mm Carbide Micro SD BN 2 FL 5XD (1.50mm) |
|
0 |
£24.14 | |||||||
SDCELBN-.06 |
1.524 mm (0.06") |
|
0 |
£24.15 | |||||||
SDCELBN-.061 |
1.5494mm (0.061") |
|
0 |
£24.15 | |||||||
SDCELBN-.062 |
.062 in Carbide Micro SD BN 2 FL 5XD (0.062") |
|
0 |
£24.15 |
