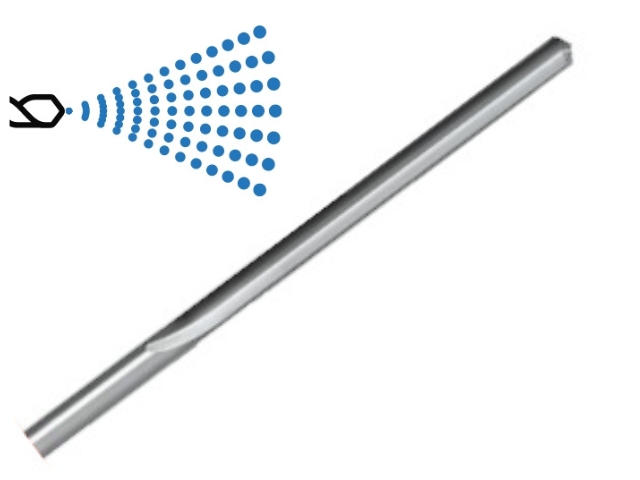

DCSFTCLS - Solid Carbide Straight Flute Through Coolant Drill 7xD
High Performance Solid Carbide Straight Flute Drills with Through Coolant on Unified Shank 7xD
Designed for machining Aluminium alloy materials, cast irons and non- ferrous materials
- Solid Carbide
- 7xD
- 130° Point
- Through Coolant
- DIN 6533HA Shank in h6 tolerance suitable for shrink fit.
- Two cutting edges with straight flute and four margin lands.
- Double margins lands improve hole surface quality improving hole tolerance and straightness.
- Geometry suitable for die-casting holes, cross- holes machining and inclined surfaces.
Also available TIAlN Coated - 5xD - 10xD
|
Part No.
|
Description
|
|
Flute Length
|
O/A Length
|
Shank Dia.
|
Point Angle
|
Price
|
|
DCSFTCLS-5.00
|
5.00mm
|
|
53.0
|
98.0
|
6.000
|
130
|
£58.32
|
|
DCSFTCLS-6.00
|
6.00mm
|
|
51.0
|
98.0
|
6.000
|
130
|
£54.43
|
|
DCSFTCLS-7.00
|
7.00mm
|
|
66.0
|
114.0
|
8.000
|
130
|
£78.61
|
|
DCSFTCLS-8.00
|
8.00mm
|
|
64.0
|
114.0
|
8.000
|
130
|
£70.49
|
|
DCSFTCLS-9.00
|
9.00mm
|
|
79.0
|
134.0
|
10.000
|
130
|
£95.28
|
|
DCSFTCLS-10.00
|
10.00mm
|
|
77.0
|
134.0
|
10.000
|
130
|
£85.47
|
|
DCSFTCLS-11.00
|
11.00mm
|
|
92.0
|
155.0
|
12.000
|
130
|
£142.04
|
|
DCSFTCLS-12.00
|
12.00mm
|
|
90.0
|
155.0
|
12.000
|
130
|
£109.70
|
|
DCSFTCLS-14.00
|
14.00mm
|
|
104.0
|
172.0
|
14.000
|
130
|
£138.09
|
|
DCSFTCLS-15.00
|
15.00mm
|
|
121.0
|
193.0
|
16.000
|
130
|
£218.92
|
|
DCSFTCLS-16.00
|
16.00mm
|
|
119.0
|
193.0
|
16.000
|
130
|
£195.46
|
|
DCSFTCLS-17.00
|
17.00mm
|
|
135.0
|
210.0
|
18.000
|
130
|
£268.63
|
|
DCSFTCLS-17.50
|
17.50mm
|
|
134.0
|
210.0
|
18.000
|
130
|
£268.63
|
|
DCSFTCLS-18.00
|
18.00mm
|
|
133.0
|
210.0
|
18.000
|
130
|
£273.34
|
|
DCSFTCLS-20.00
|
20.00mm
|
|
147.0
|
229.0
|
20.000
|
130
|
£364.45
|
|
